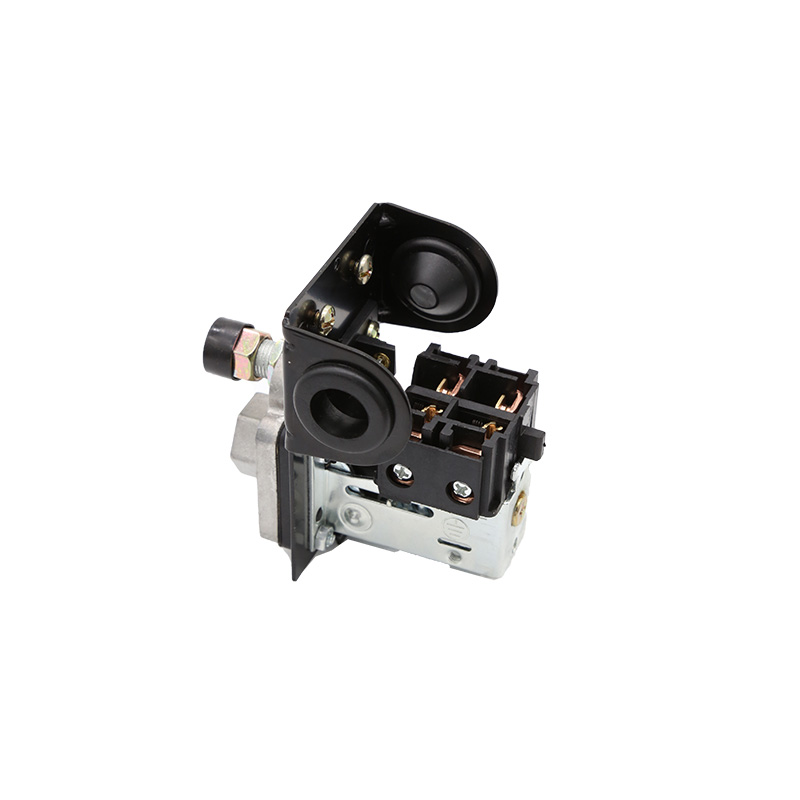

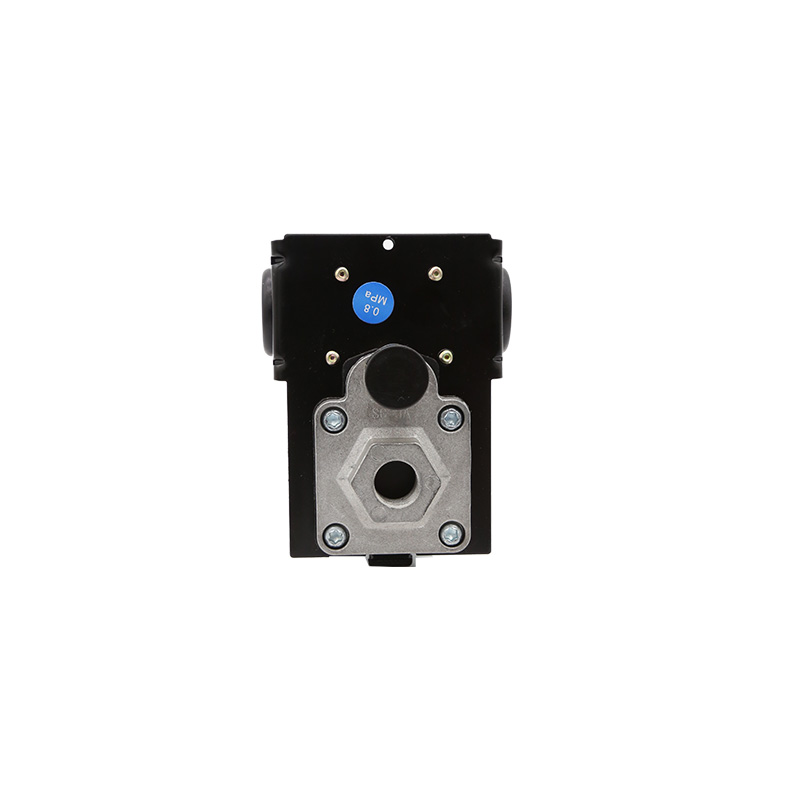

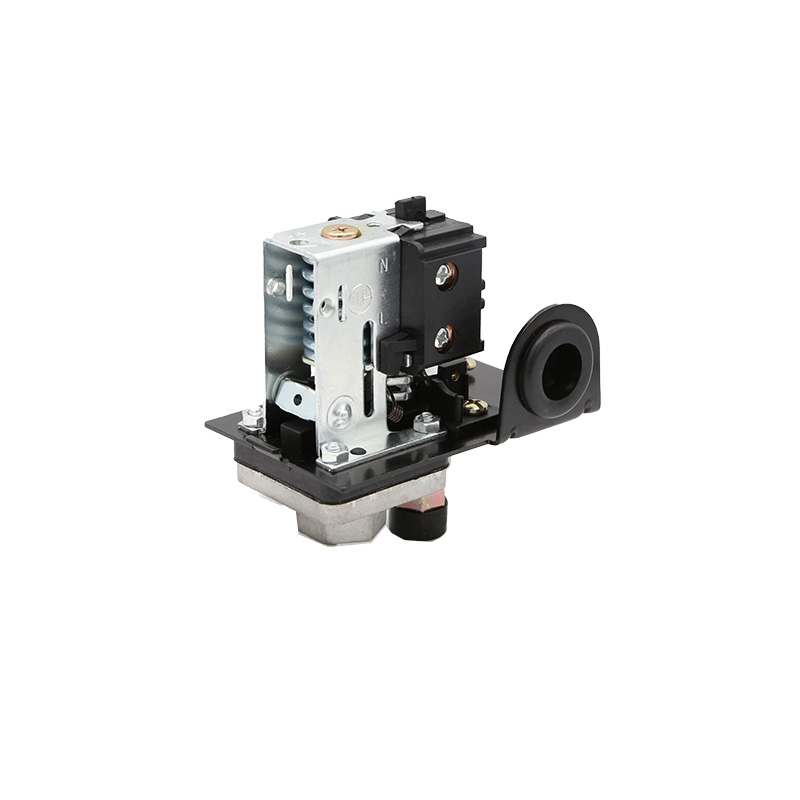

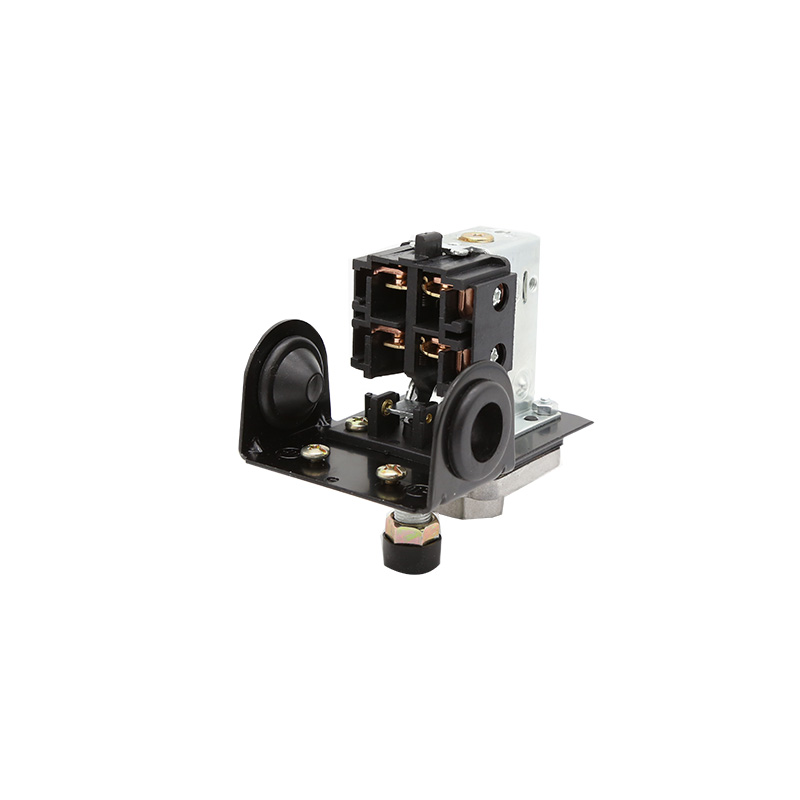

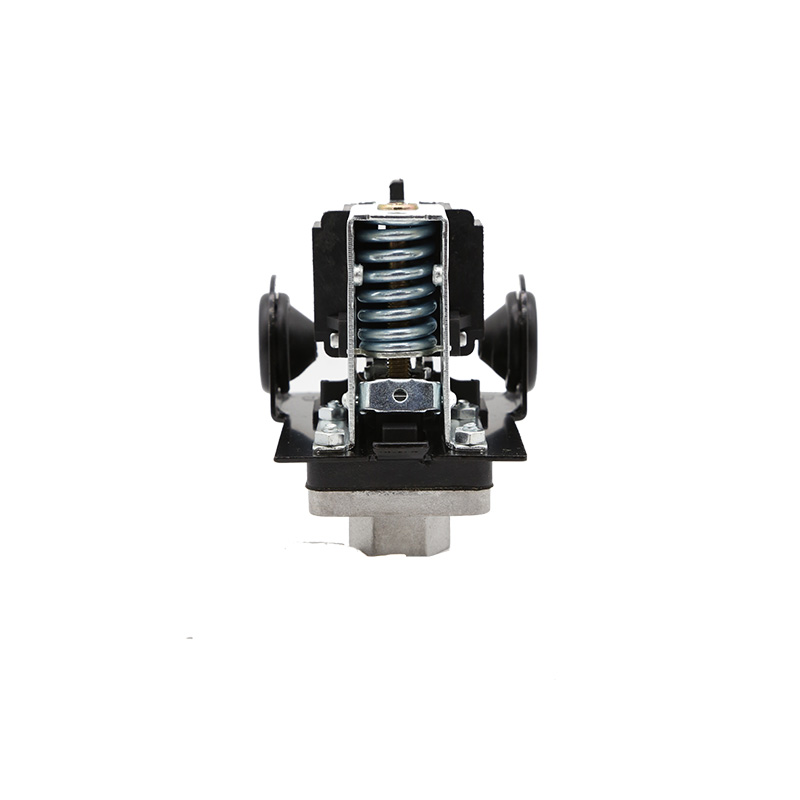

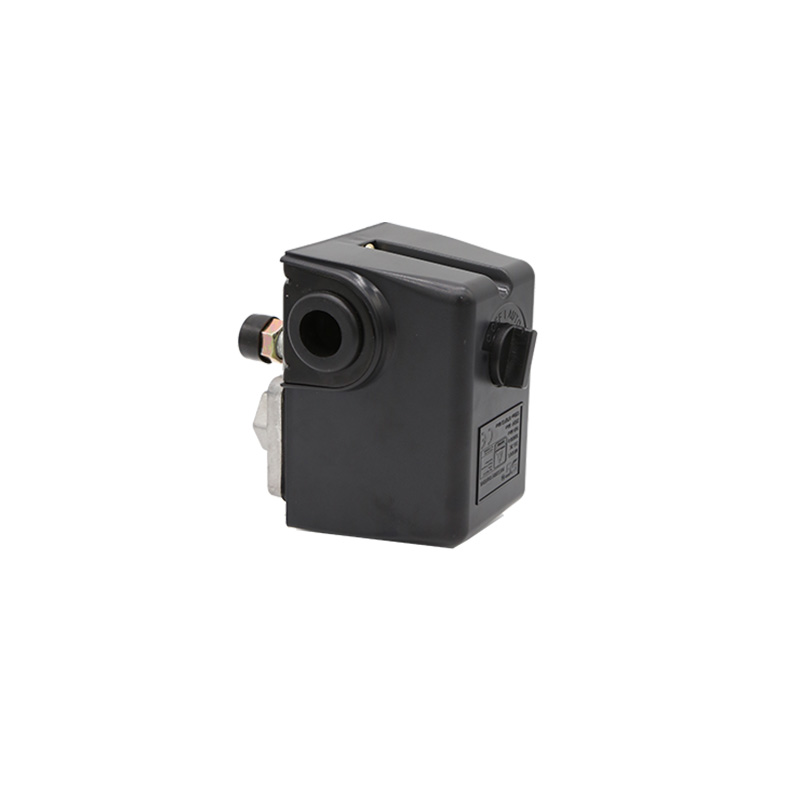

SG-3 series pressure control switch is a mechanical pressure control device used to control the air compressor to automatically start and stop within the preset pressure value range. The device is flexible to install, easy to use, durable, and is usually set at the factory. It is closed and equipped with a relief valve to avoid starting the motor load, which is more energy-saving and environmentally friendly. The assembly with Bama assembly is convenient for users to install and use directly. Special specifications can be customized according to customer requirements.
|
Technical parameter: |
|
Unit conversion: 1kgf/cm2=14.2PSI 1Bar=14.5PSI |
|
Model |
Pressure adjustment range kgf/cm2 |
Differential pressure range kgf/cm2 |
Factory pressure setting high value kgf/cm2 |
Rated voltage/current |
Common interface standards |
|
SG-3 |
6.0-12.5
85-175 |
2.0-3.0
30-45 |
8.0
115 |
240VAC/20A
(16A) |
G1/4,G3/8,ZG1/4,ZG3/8,NPT1/4,
RP3/8 |
|
SG-3 order number: interface form + interface thread + load release valve form + release valve inner diameter + pressure setting high value |
|
Interface form |
display method |
Interface thread |
display method |
Relief valve form |
Display method |
Inner diameter of relief valve |
Display method |
Clamp form |
Representation |
|
Plastic bottom plate single pass |
A |
G1/4 |
1 |
Brass valve |
T |
￠6.0 |
1 |
Plastic wire clip |
A |
|
Plastic bottom plate cross |
B |
G3/8 |
2 |
Zinc valve |
X |
￠6.4 |
2 |
Wire clip |
B |
|
Iron floor single pass |
C |
ZG1/4 |
3 |
Plastic valve |
S |
|
3 |
Certified wire clip |
C |
|
Iron floor four-way |
D |
ZG3/8 |
4 |
Valveless |
W |
|
|
|
|
|
|
|
NPT1/4 |
5 |
|
|
|
|
|
|
|
|
|
RP1/4 |
6 |
|
|
|
|
|
|
Example: SG-3A1T1/8kgf/cm2 is a single pass with G1/4 thread, the inner diameter of the copper relief valve is ￠6.0, and the high pressure setting is 8kgf/cm2
Example: SG-3D5X2C/115PSI is a four-way iron plate with NPT1/4 thread, zinc relief valve inner diameter ￠6.4, high pressure setting is 8kgf/cm2
|
