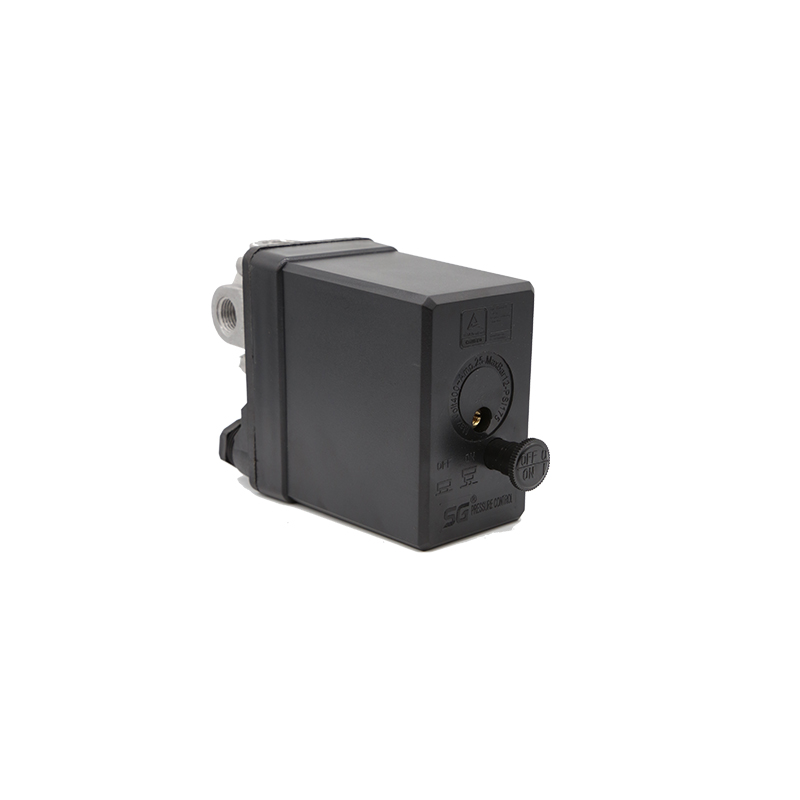

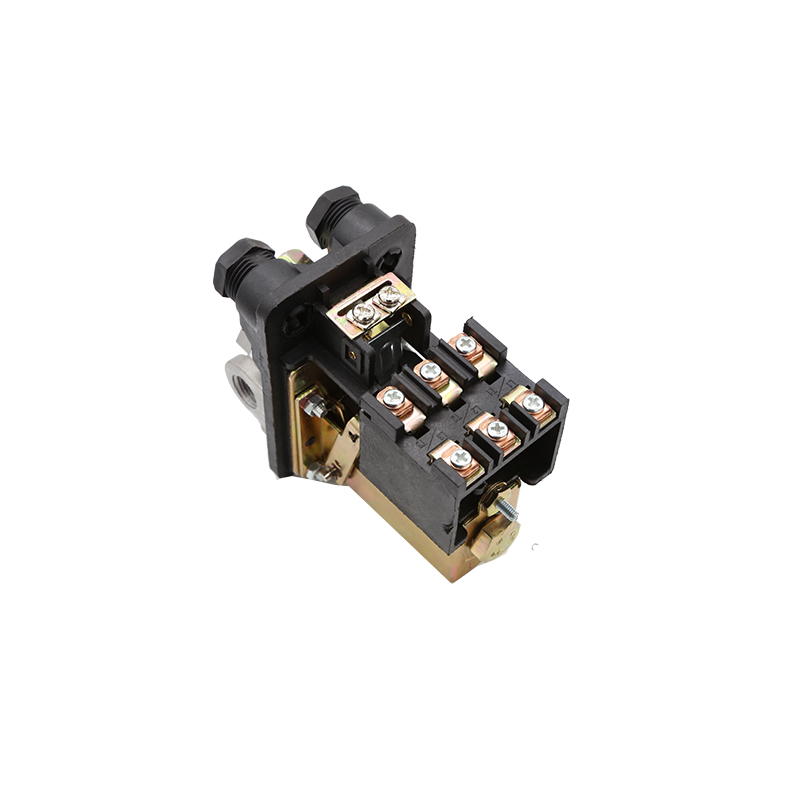

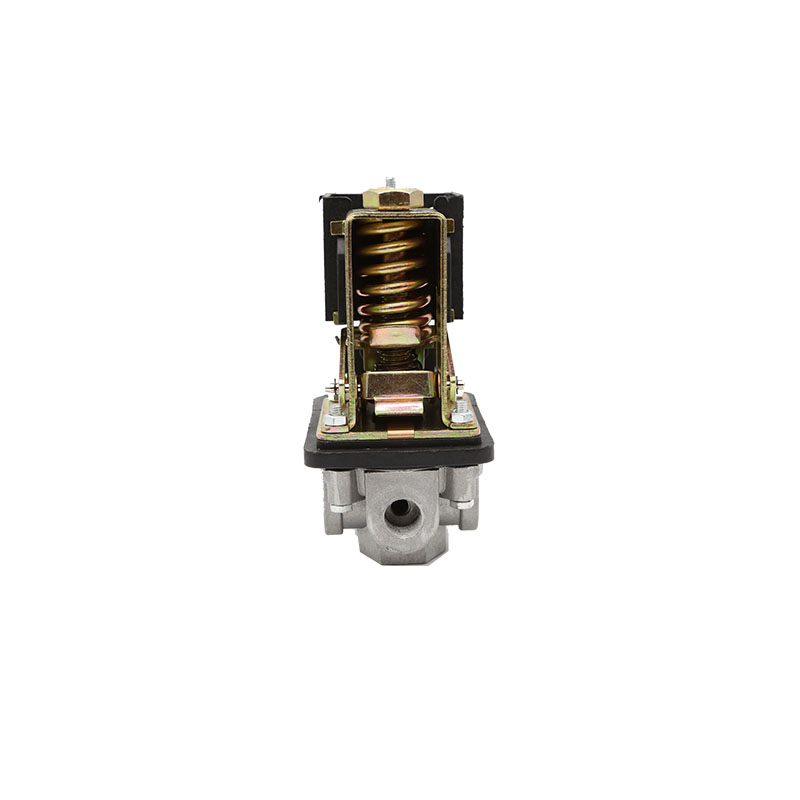

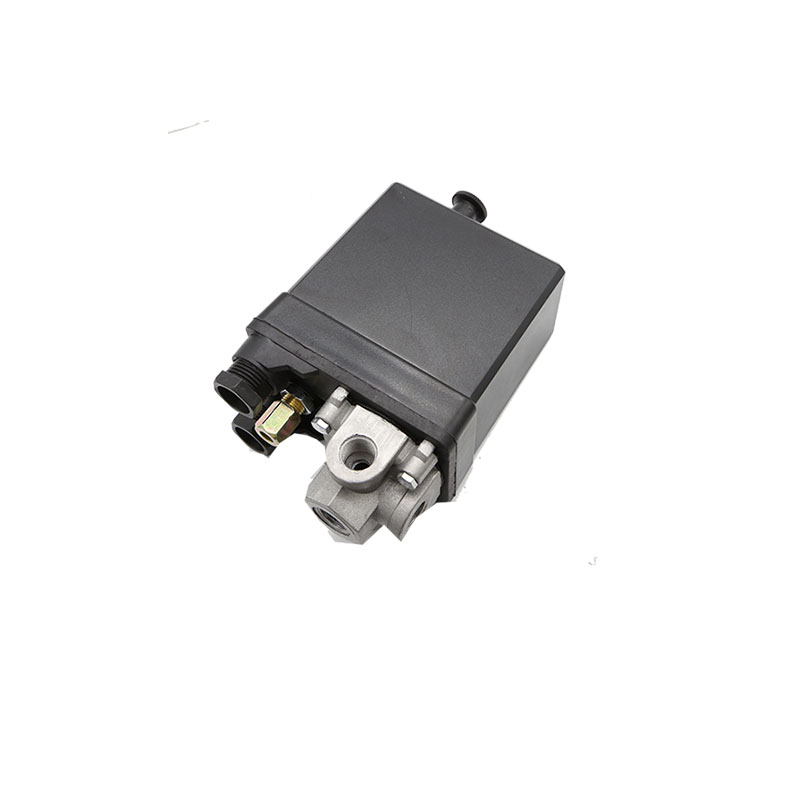

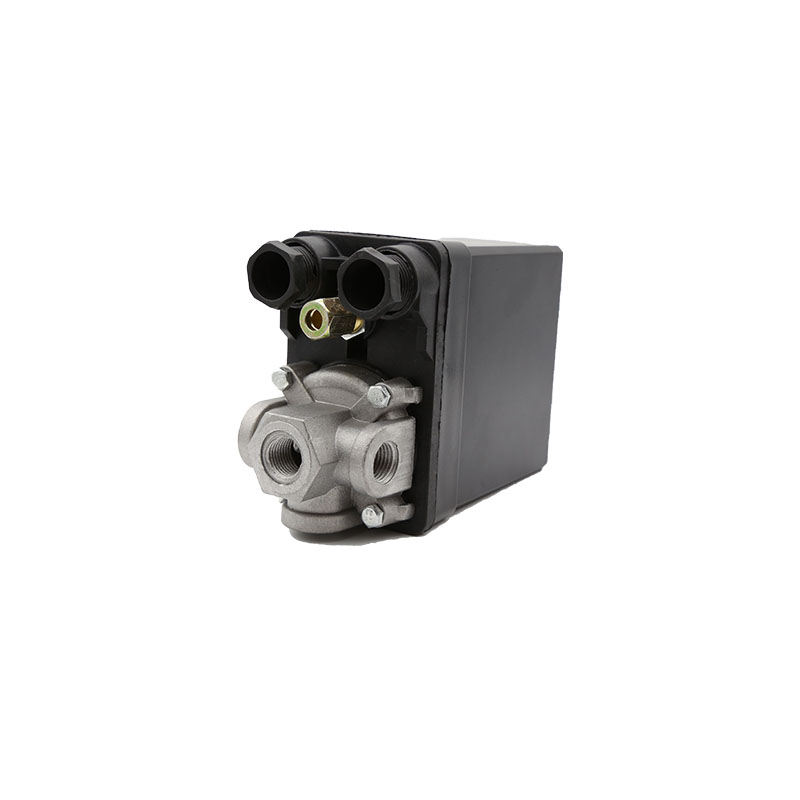

The SG-4 series pressure control switch is a mechanical pressure control device used to control the air compressor to automatically start and stop within a preset pressure value range. The device is flexible in installation, easy to use, and durable. The factory setting is usually normal It is closed and equipped with a load release valve to avoid starting the motor load. The circuit breaker with motor protection can prevent the motor from overloading, which is more energy-saving and environmentally friendly. Products with special specifications can be customized according to customer requirements.
|
Technical parameter: |
|
Unit conversion: 1kgf/cm2=14.2PSI 1Bar=14.5PSI |
|
Model |
Pressure adjustment range kgf/cm2 |
Differential pressure adjustment range kgf/cm2 |
Factory pressure setting high value kgf/cm2 |
Rated voltage/current |
Common interface standards |
|
SG-4 |
4.0-12.5
55-175 |
2.0-4.0
30-60 |
8.0
115 |
400VAC-3/25A |
G1/4,NPT1/4,ZG1/4,ZG3/8 |
|
SG-4 order number: interface form + interface thread + release valve form + release valve inner diameter + pressure setting high value |
|
Interface form |
Display method |
Interface thread |
Display method |
Relief valve form |
Display method |
Inner diameter of relief valve |
Display method |
|
Single-pass |
A |
G1/4 |
1 |
Brass valve |
T |
￠6.0 |
1 |
|
Stone |
B |
NPT1/4 |
2 |
/ |
/ |
￠6.4 |
2 |
|
|
|
ZG1/4 |
3 |
/ |
/ |
|
|
|
|
|
ZG3/8 |
4 |
|
|
|
|
Example: SG-4A1T1/8kgf/cm2 is a single-pass with G1/4 thread, the inner diameter of the copper relief valve is ￠6.0, and the high pressure setting is 8kgf/cm2 |
|
