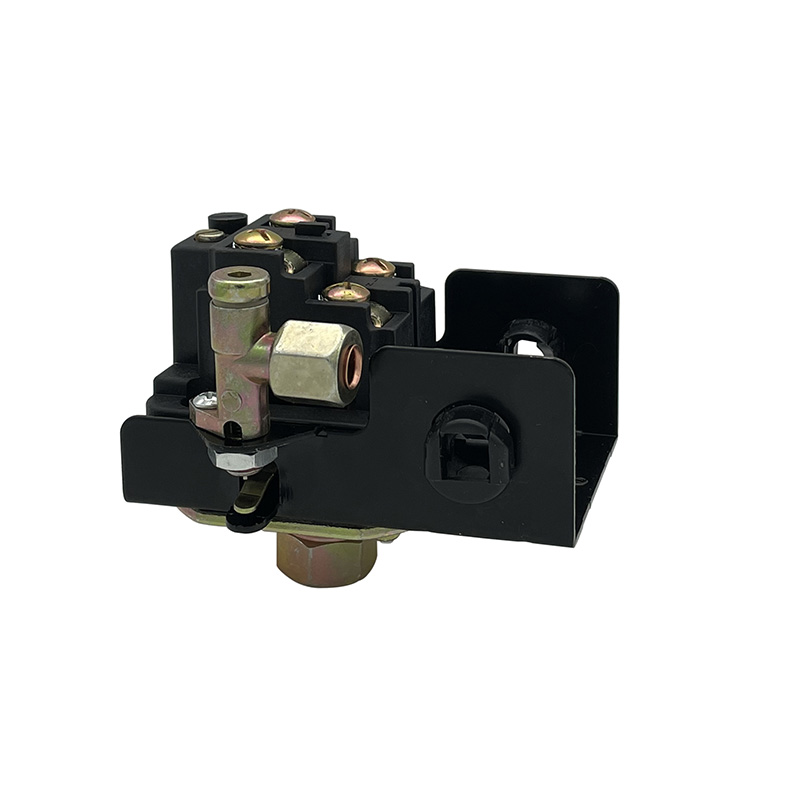

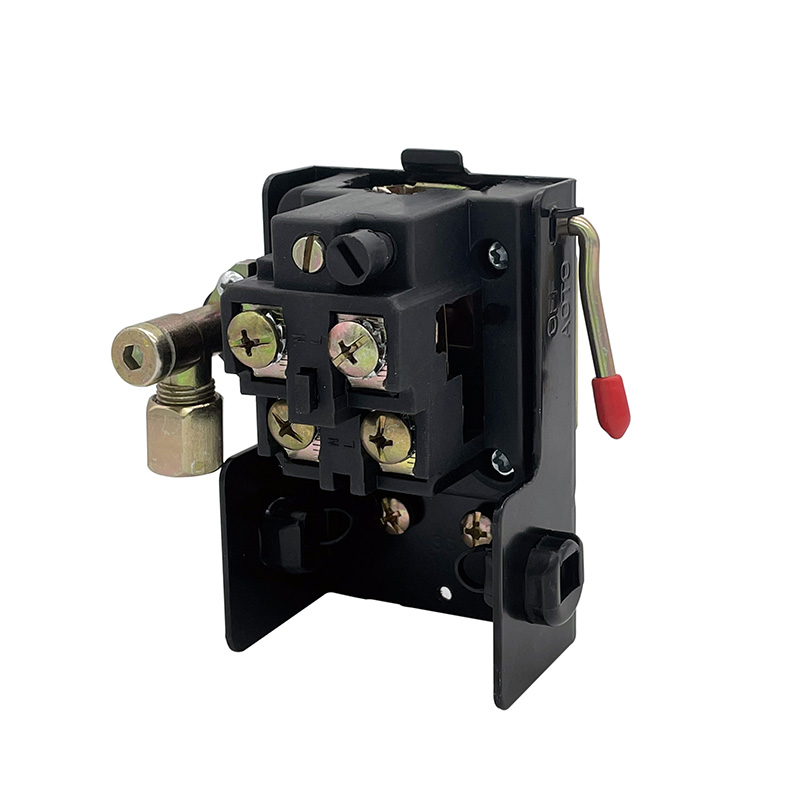

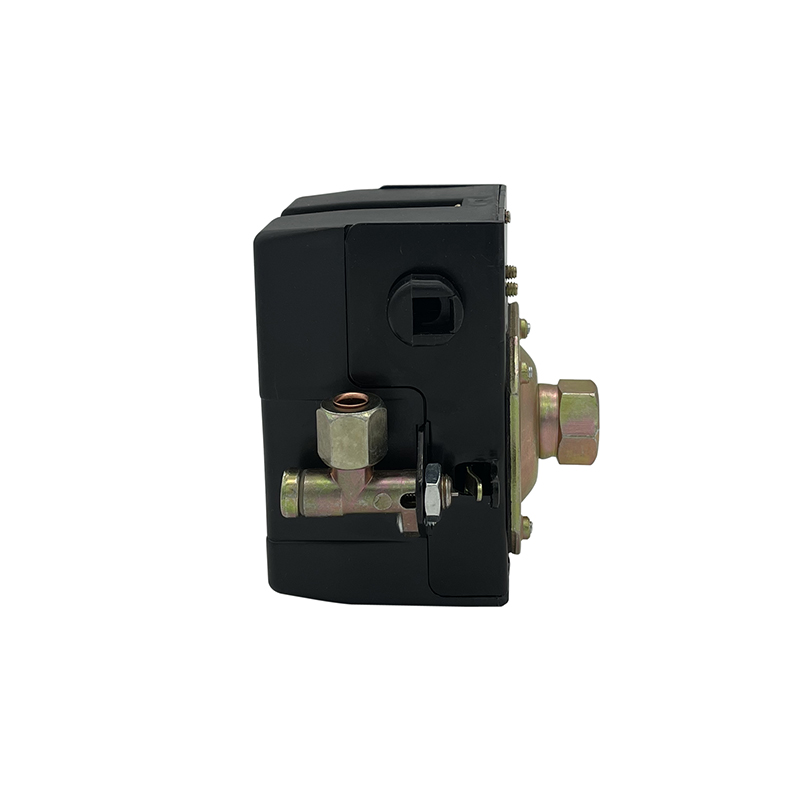

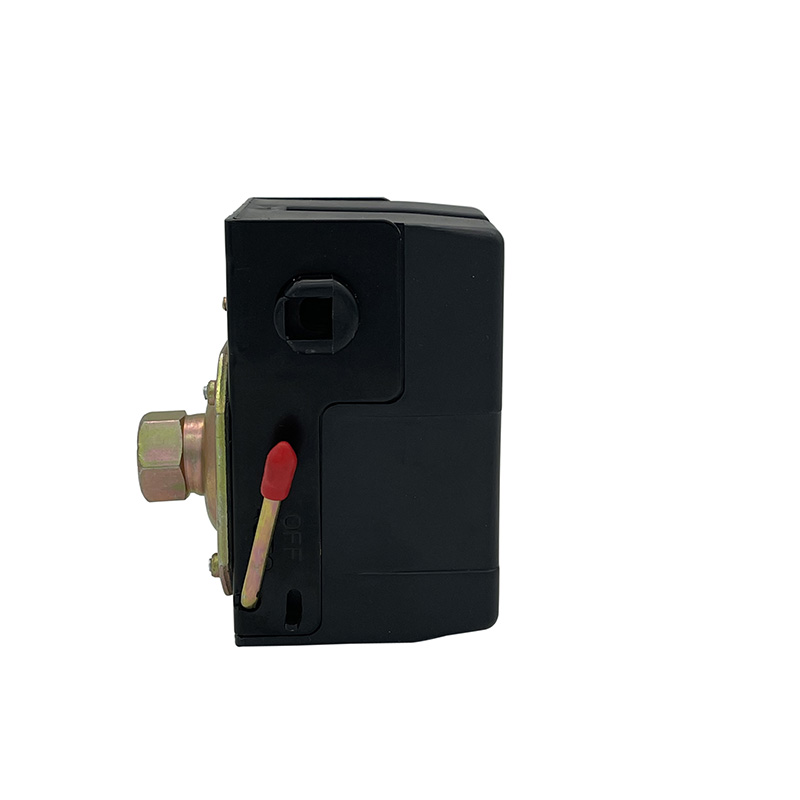

SG-5 series pressure control switch is a mechanical pressure control device used to control the automatic start and stop of the air compressor within the preset pressure value range. The device is flexible to install, easy to use and durable. Closed and with a relief valve to avoid motor load starting, which is more energy-saving and environmentally friendly. Special specification products can be customized according to customer requirements.
|
technical parameter: |
|
Unit conversion: 1kgf/cm2=14.2PSI 1Bar=14.5PSI |
|
model |
Pressure adjustment range kgf/cm2
(PSI)
|
Differential pressure adjustment range kgf/cm2
(PSI)
|
Factory setting shutdown pressure kgf/cm2
(PSI)
|
Rated voltage/current |
Common interface standards |
|
SG-5 |
|
|
|
|
G1/4,NPT1/4,R1/4
|
|
SG-5 order number: interface form + interface thread + relief valve form + relief valve inner diameter + pressure setting + wire clamp form + handle form + factory setting shutdown pressure |
|
Interface form |
display method |
Interface thread |
display method |
Relief valve form |
display method |
Relief valve inner diameter |
display method |
Clamp form |
display method |
handle form |
display method |
|
Iron single-pass internal thread |
A |
G1/4 |
1 |
No relief valve |
W |
No relief valve |
0 |
rubber cable clip |
A |
long curved handle |
1 |
|
Aluminum cross internal thread |
B |
R1/4 |
3 |
vertical |
V |
￠6.1 |
1 |
Certified wire clip |
B |
long straight handle |
2 |
|
Iron single-pass external thread |
C |
NPT1/4 |
5 |
level |
L |
￠6.4 |
2 |
|
|
short straight handle |
3 |
|
|
|
|
|
|
|
|
3 |
|
|
|
|
Example: SG-5B1V2B3/8kgf/cm2 is an aluminum four-way with G1/4 thread, the inner diameter of the vertical relief valve is ￠6.4, it is equipped with a certified wire clamp and a short straight handle, and the factory setting shutdown pressure is 8kgf/cm2 |
|
