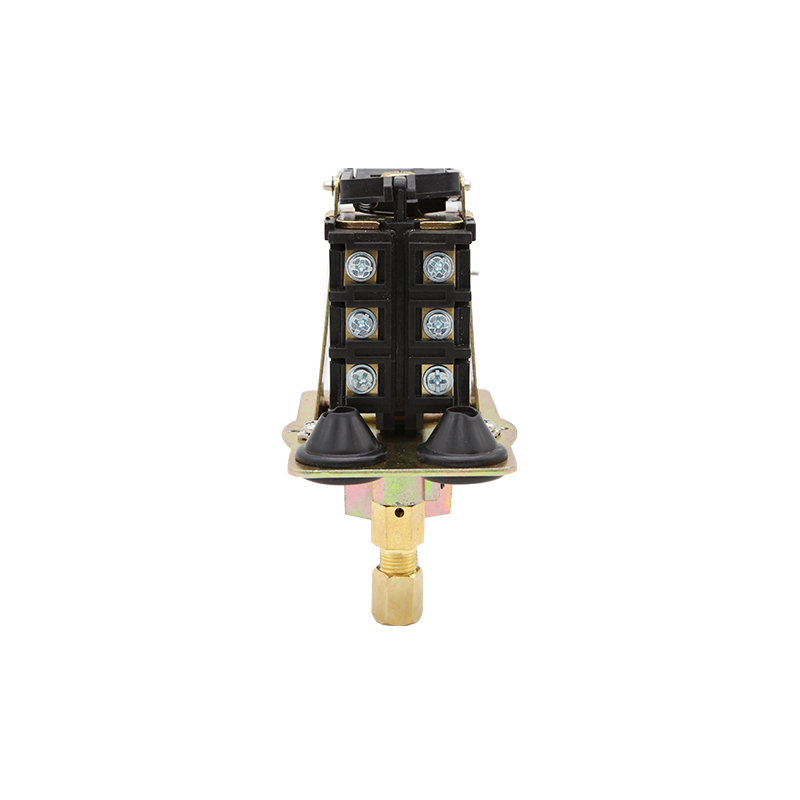

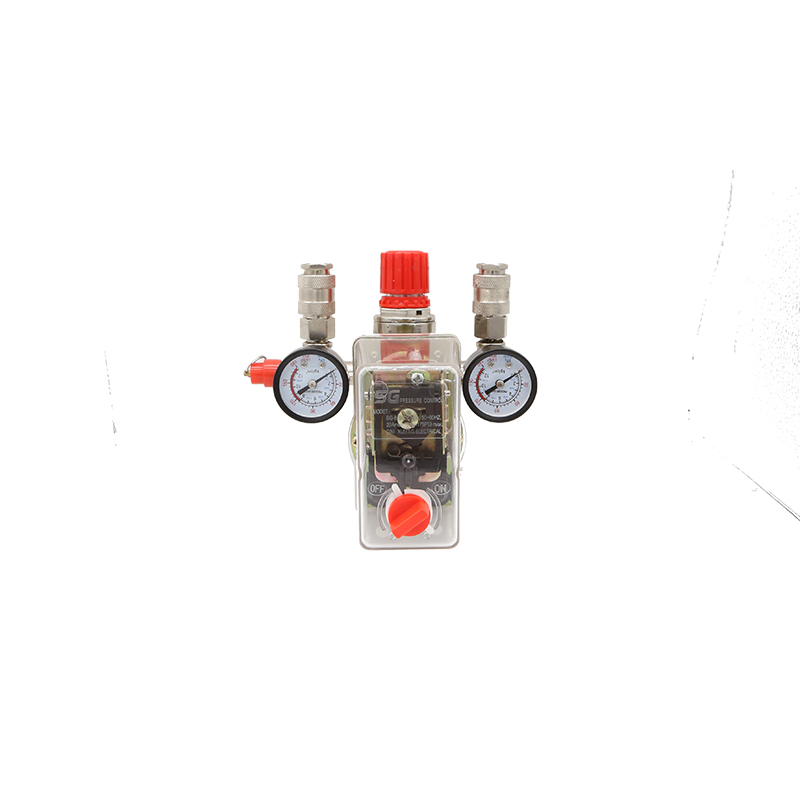

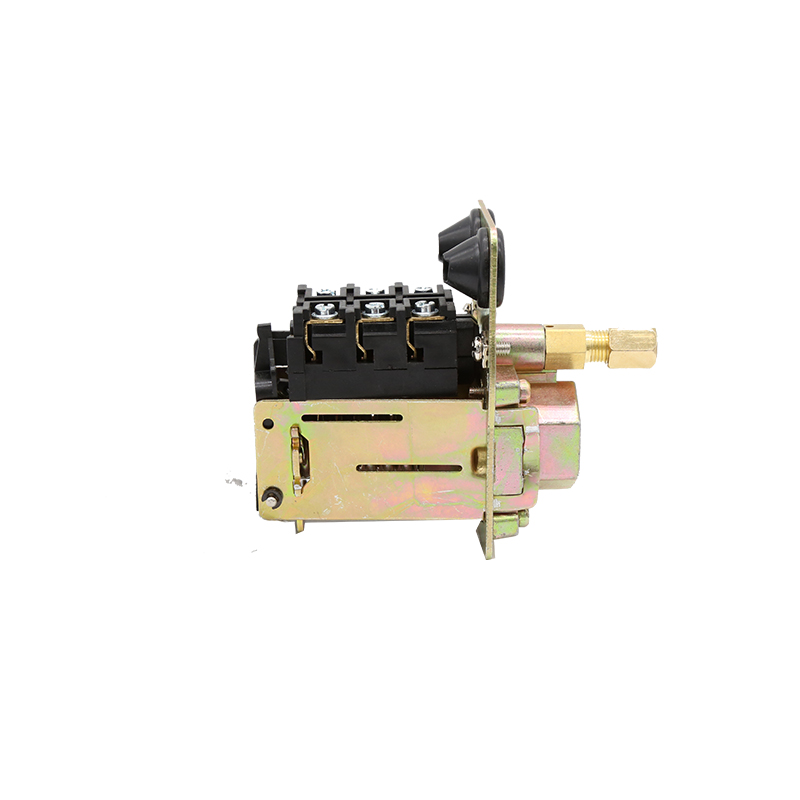

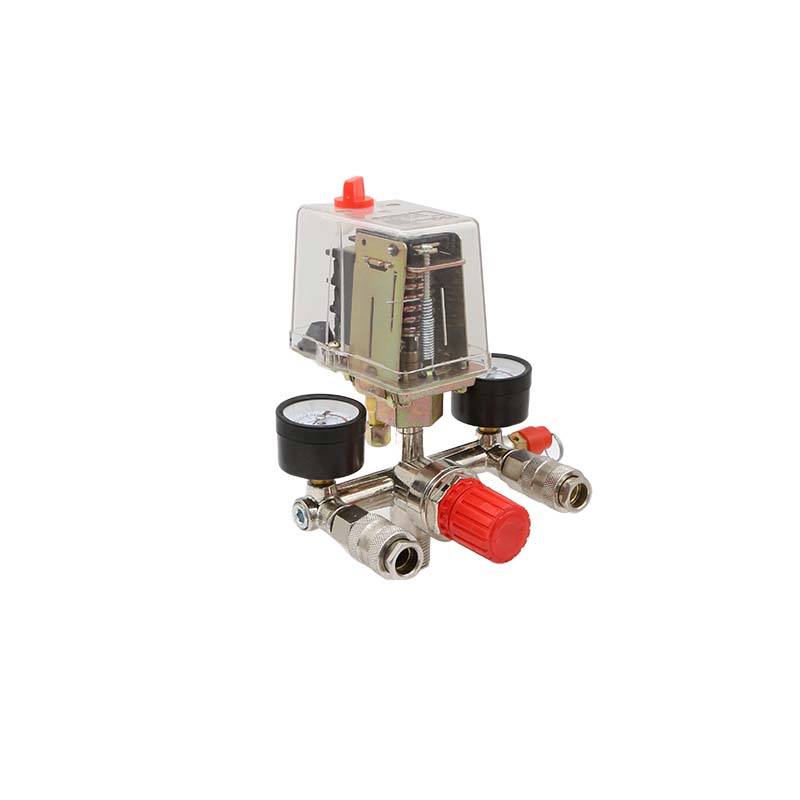

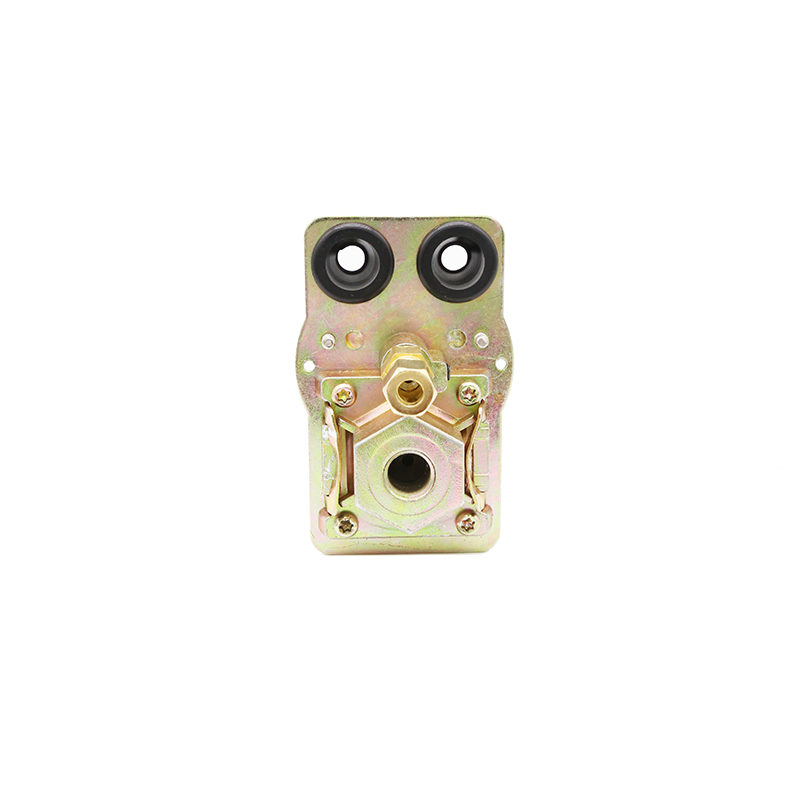

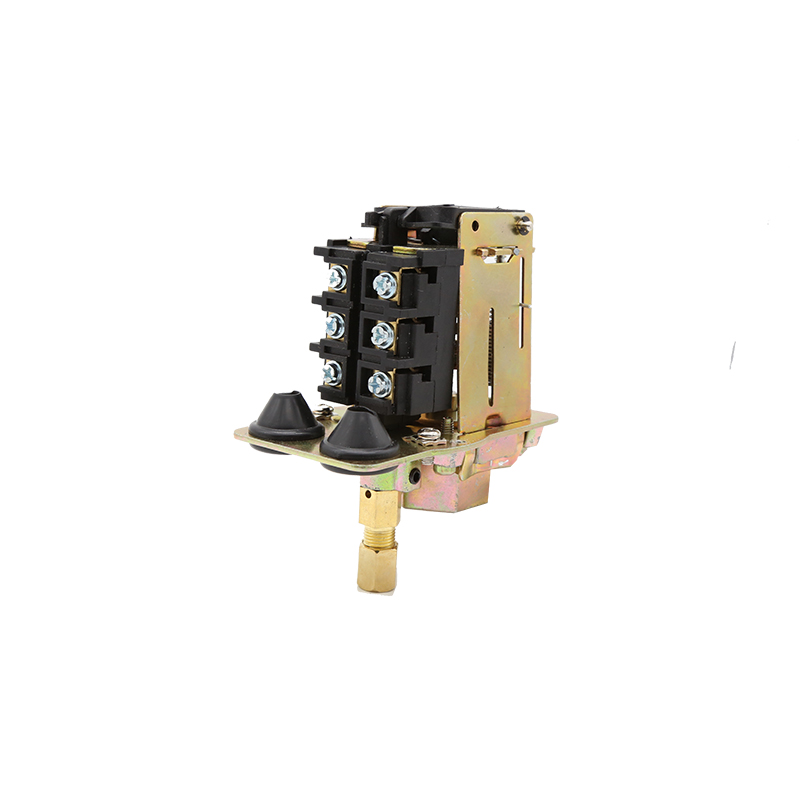

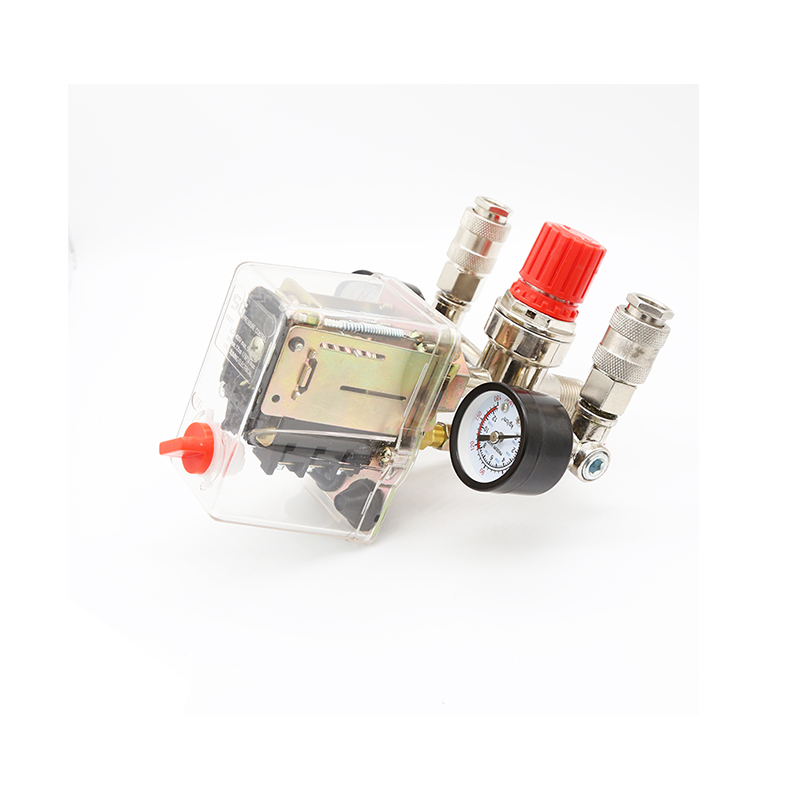

The SG-6 series pressure control switch is a mechanical pressure control device used to control the air compressor to automatically start and stop within a preset pressure value range. The device is flexible in installation, easy to use, and durable. The factory setting is usually normal. It is closed and equipped with a relief valve to avoid starting the motor load, which is more energy-saving and environmentally friendly. Products with special specifications can be customized according to customer requirements.
|
Technical parameter: |
|
Unit conversion: 1kgf/cm2=14.2PSI 1Bar=14.5PSI |
|
Model |
Pressure adjustment range kgf/cm2 |
Differential pressure adjustment range kgf/cm2 |
Factory pressure setting high value kgf/cm2 |
Rated voltage/current |
Common interface standards |
|
SG-6 |
4.0-12.5
55-175 |
2.0-4.0
30-50 |
8.0
115 |
400VAC-3/25A
（16A) |
G1/4,G1/2,ZG1/4,NPT1/4,NPT1/2 |
|
SG-6 order number: interface form + interface thread + release valve form + release valve inner diameter + pressure setting |
|
Interface form |
Display method |
Interface thread |
Display method |
Relief valve form |
Display method |
Inner diameter of relief valve |
Display method |
|
Single-pass |
A |
G1/4 |
1 |
Brass valve |
T |
￠6.0 |
1 |
|
Stone |
B |
G1/2 |
2 |
|
|
￠6.4 |
2 |
|
|
|
ZG1/4 |
3 |
|
|
|
|
|
|
|
ZG1/2 |
4 |
|
|
|
|
|
|
|
NPT1/4 |
5 |
|
|
|
|
|
|
|
NPT1/2 |
6 |
|
|
|
|
Example: SG-6A1T1/8kgf/cm2 is single-pass with G1/4 thread, the inner diameter of the copper relief valve is ￠6.0, and the high pressure setting is 8kgf/cm2
技术参数: 单位换算: 1kgf/cm2=14.2PSI 1Bar=14.5PSI 型号 压力调节范围kgf/cm2 压差调节范围kgf/cm2 出厂压力设置高值kgf/cm2 额定电压/电流 常用接口标准 SG-6 4.0-12.5
55-175 2.0-4.0
30-50 8.0
115 400VAC-3/25A
（16A) G1/4,G1/2,ZG1/4,NPT1/4,NPT1/2
|
SG-6订货编号:接口形式+接口螺纹+释荷阀形式+释荷阀内径+压力设置 |
|
接口形式 |
表示方法 |
接口螺纹 |
表示方法 |
释荷阀形式 |
表示方法 |
释荷阀内径 |
表示方法 |
|
单通 |
A |
G1/4 |
1 |
铜阀 |
T |
￠6.0 |
1 |
|
四通 |
B |
G1/2 |
2 |
|
|
￠6.4 |
2 |
|
|
|
ZG1/4 |
3 |
|
|
|
|
|
|
|
ZG1/2 |
4 |
|
|
|
|
|
|
|
NPT1/4 |
5 |
|
|
|
|
|
|
|
NPT1/2 |
6 |
|
|
|
|
例:SG-6A1T1/8kgf/cm2 为单通配G1/4螺纹,铜释荷阀内径为￠6.0,压力设置高值为8kgf/cm2
|
|
